Mesas Mezclas de Estudio/Directo Yamaha MG124CX

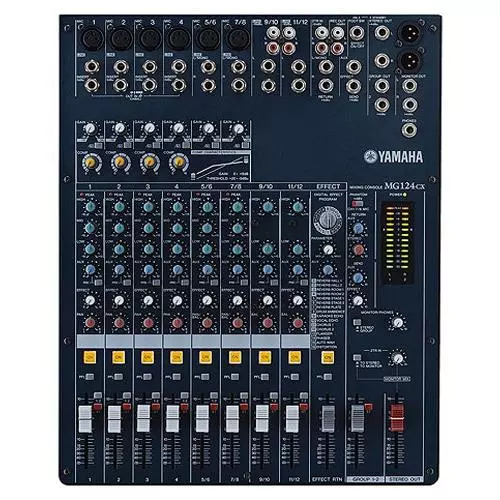

Mezclador Yamaha MG124CX Mesa de Mezclas Estudio-Directo Yamaha MG-124CX Los nuevos mezcladores de la serie MG de Yamaha MG 124CX ofrecen un nuevo look y refinadas características en un paquete mas pequeño y ligero. Incluyendo unos nuevos canales con compresión su calidad y su facilidad de manejo hacen que estas mesas puedan usarse tanto por aficionados como por prefesionales. YAMAHA MG 124 CX además tiene incorporado un pequeño procesador de efectos para mayor comodidad del usuario.   ESPECIFICACIONES YAMAHA MG 124CX  .   Frequency Response ST OUT GAIN: min (CH 1-7/8)20Hz-20kHzNominal output level@1kHzInput: CH1-11/12, RETURN, 2TR IN -3.0 0.0 1.0 dB GROUP OUT AUX SEND (EFFECT SEND*) MONITOR OUT, REC OUT Total Harmonic Distortion (THD+N) ST OUT +14dBu, 20Hz-20kHz, Input GAIN Control at minimum     0.1 % Hum and Noise Hum and Noise are measured with a 6dB/octave filter @12.7kHz; equivalent to a 20kHz filter with infinite dB/octave attenuation. input: CH INPUT 1-2 MIC EIN (Equivalent Input Noise): Rs=150Ω, GAIN: maxmimum     -128 dBu ST OUT ST OUT, GROUP1-2 master fader at nominal level and all channel's ST and 1-2 switches off.     -88 dBu GROUP OUT EFFECT/AUX(AUX1,2*) SEND Master EFFECT/AUX (AUX1, 2) control at nominal leveland all CH EFFECT/AUX (AUX1, 2) controls at minimum.     -81 dBu ST OUT STEREO OUT, GROUP Master fader and one CHfader at nominal level. -64 dBu GROUP OUT ST OUT Residual Output Noise     -98 dBu Crosstalk (1kHz) Adjacent Input CH 1-4     -70 dB Input to Output STEREO L/R, CHs 1-4, PAN: panned hard left or right     -70 dB Maximum Voltage Gain (1kHz) All VR are MAX when measured. PAN/BAL: panned hard left or hard right Rs=150Ω,INPUT GAIN: max MIC to CH INSERT OUT   60   dB MIC to ST OUT   84   dB MIC to GROUP OUT   84   dB MIC to GROUP to ST   94   dB MIC to REC OUT   62.2   dB MIC to MONITOR OUT, ST TO MONITOR   94   dB MIC to PHONES OUT   83   dB MIC to AUX (AUX1*) SEND PRE   76   dB MIC to AUX (AUX1*) SEND POST, EFFECT (AUX2*) SEND   86   dB CH 5/6, 7/8 LINE to STEREO OUT   58   dB CH 5/6, 7/8 LINE to GROUP OUT   58   dB CH 5/6, 7/8 LINE to AUX (AUX1*) SEND PRE   47   dB CH 5/6, 7/8 LINE to AUX (AUX1*) SEND POST, EFFECT(AUX2*) SEND   57   dB CH 9/10, 11/12 to STEREO OUT   34   dB CH 9/10, 11/12 to GROUP OUT   34   dB Rs=150Ω RETURN to ST OUT   16   dB RETURN to EFFECT (AUX2*) SEND   9   dB Rs=600Ω 2TR IN to ST OUT   27.8   dB Phantom Voltage MIC     48   V Input HPF   CH 1-7/8, 80Hz, 12 dB/oct Input Equalization Turn over/ roll-off frequency of shelving: 3dB blow maximum variable level, +15, -15 dB maximum CH 1-7/8 HIGH: 10kHz: shelving MID: 2.5kHz: peaking LOW: 100Hz: shelving CH 9/10-11/12 HIGH: 10kHz: shelving LOW: 100Hz: shelving Internal Digital Effect*   16 prgrams, PARAMETER cotrol , Foot Switch (effect on/off) LED Level Meter Pre MONITOR level 2x12 points LED meter (PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB)PEAK lights if the signal level reaches 3 dB below the clipping level. Power Supply Adaptor PA-20 AC 35 VCT, 0.94 A, Cable Length = 3.6 m Power Consumption   30 W Dimensions(WxHxD)   346.2 mm x 86.1 mm x 436.6 mm Net Weight   3.2 kg (MG124CX), 3 kg (MG124C) Option   Foot Switch *(FC5)  Mezclador Yamaha MG124CX Mesa de Mezclas Estudio-Directo Yamaha MG-124CX
